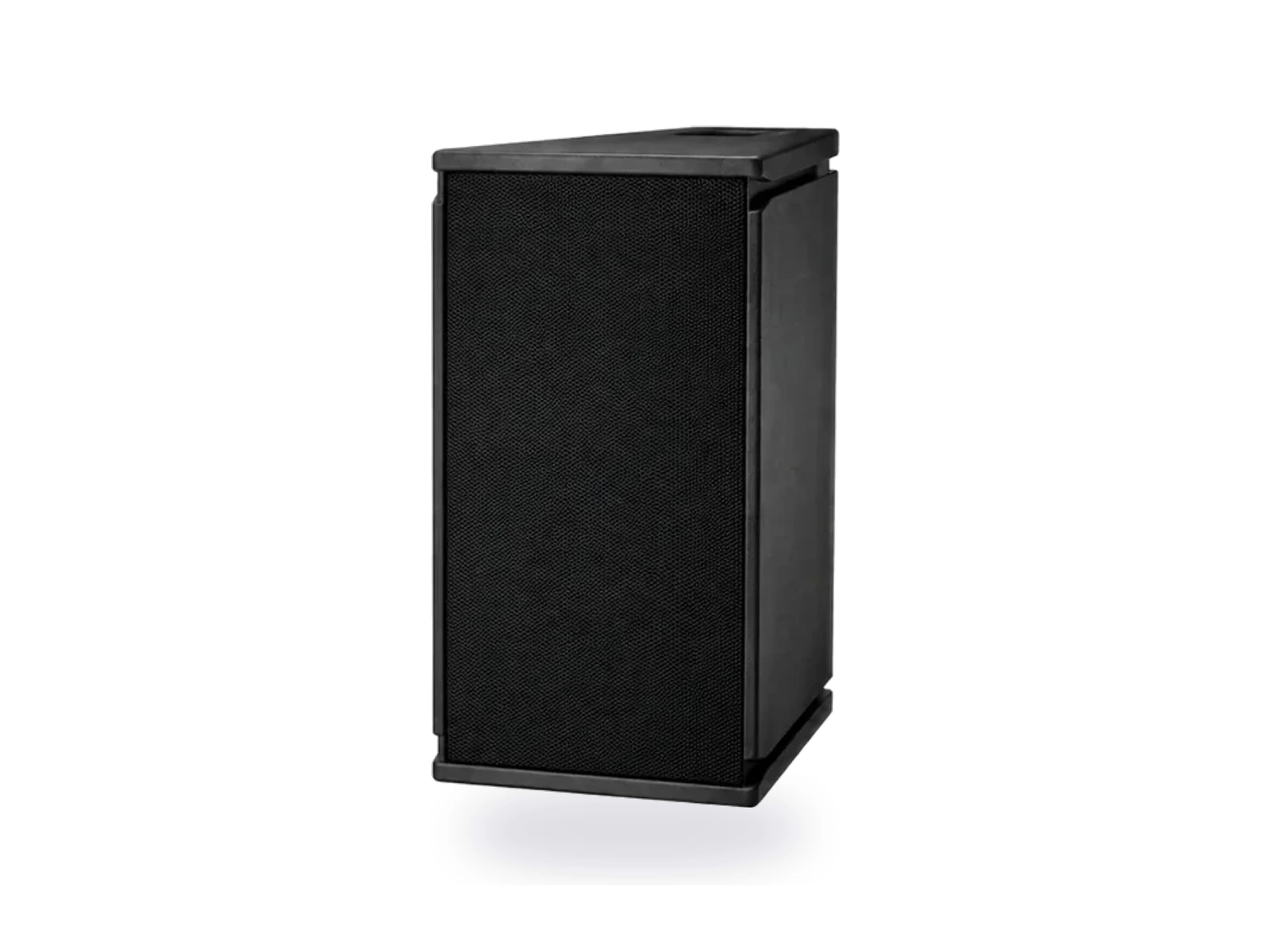

ARCS II
- TypeSingle 15" 2-Way Constant-Curvature Line Source Speaker
- Frequency50 Hz–20 kHz
- Performance142 dB
- Configuration22.5° Symmetrical × 60° Asymmetrical
Home / Products / Full Range Speakers
BOWEI AUDIO · PRODUCT SERIES
Full Range Speakers
Clear. Versatile. Precise.
Professional full-range speaker systems for rental, live events, venues and fixed-installation projects. Engineered for clear, balanced sound and versatile deployment across applications of any scale.
- 13 ModelsPublished range
- OEM / ODMAvailable
- System MatchingSupport
13 PUBLISHED MODELS
All Professional Speakers
Compare the published product range using current CMS specifications. Open a model page for complete details or send your project requirements for a quotation.
F12+
- TypeSingle 12" Passive 2-Way Full-Range Speaker
- Frequency65 Hz–18 kHz
- Performance120 dB Continuous / 126 dB Peak
- Configuration80° × 50°

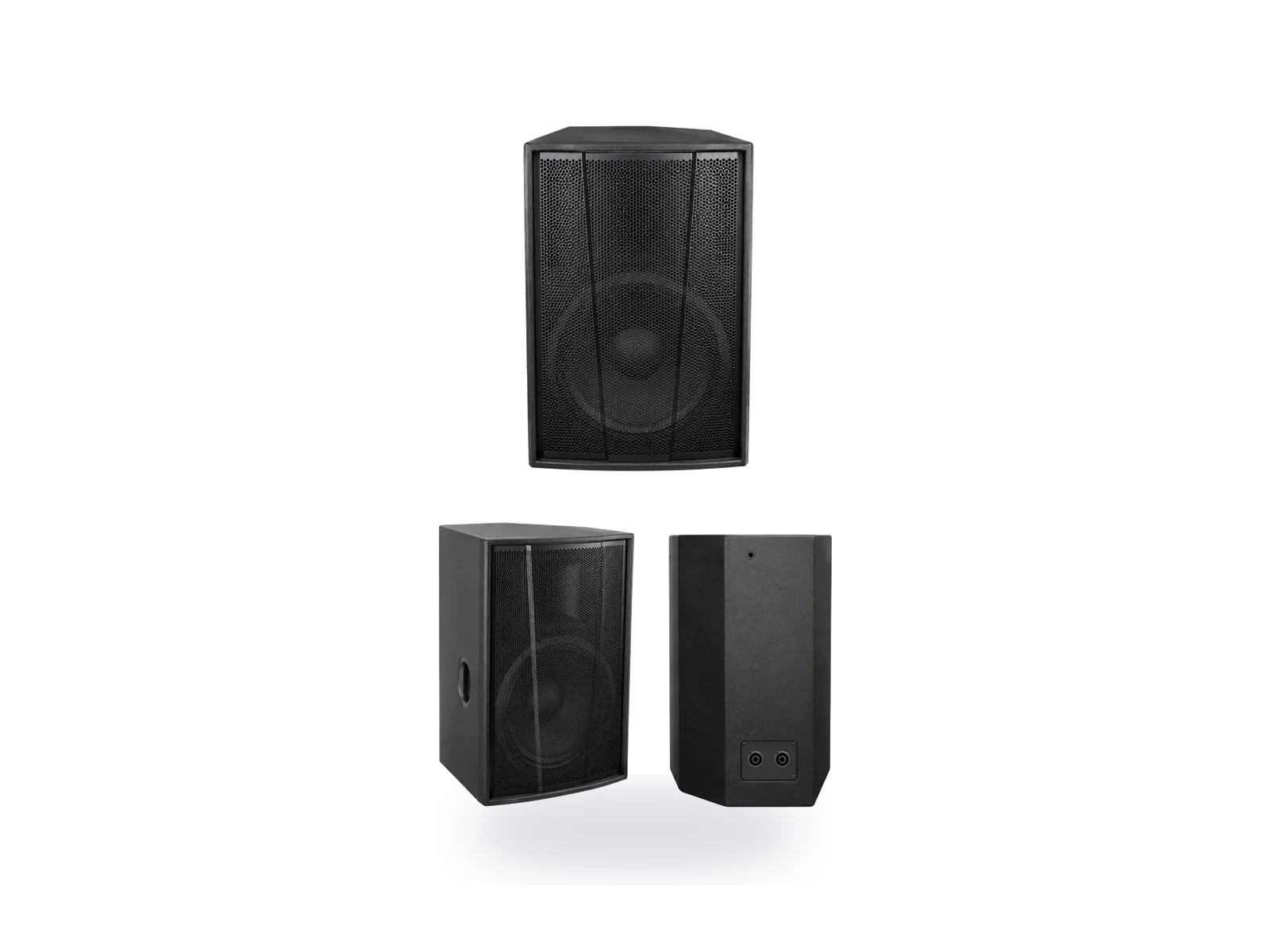

F15+
- TypeSingle 15" Passive 2-Way Full-Range Speaker
- Frequency65 Hz–18 kHz
- Performance125 dB Peak
- Configuration8Ω

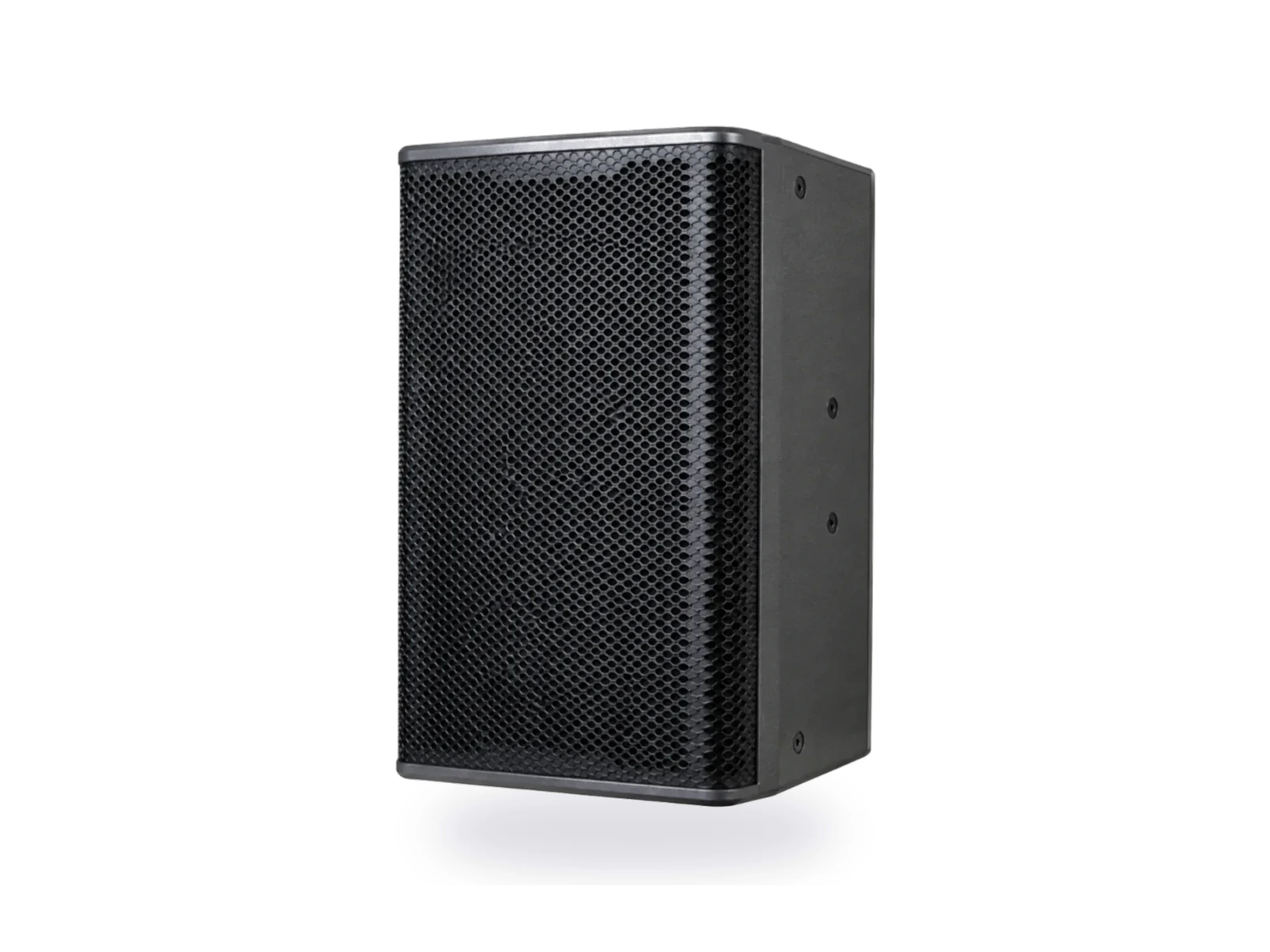

KP052
- TypeSingle 12" Passive 2-Way Full-Range Karaoke Speaker
- Frequency55 Hz–18 kHz ±3 dB
- Performance123 dB Continuous / 129 dB Peak
- Configuration70° × 60°

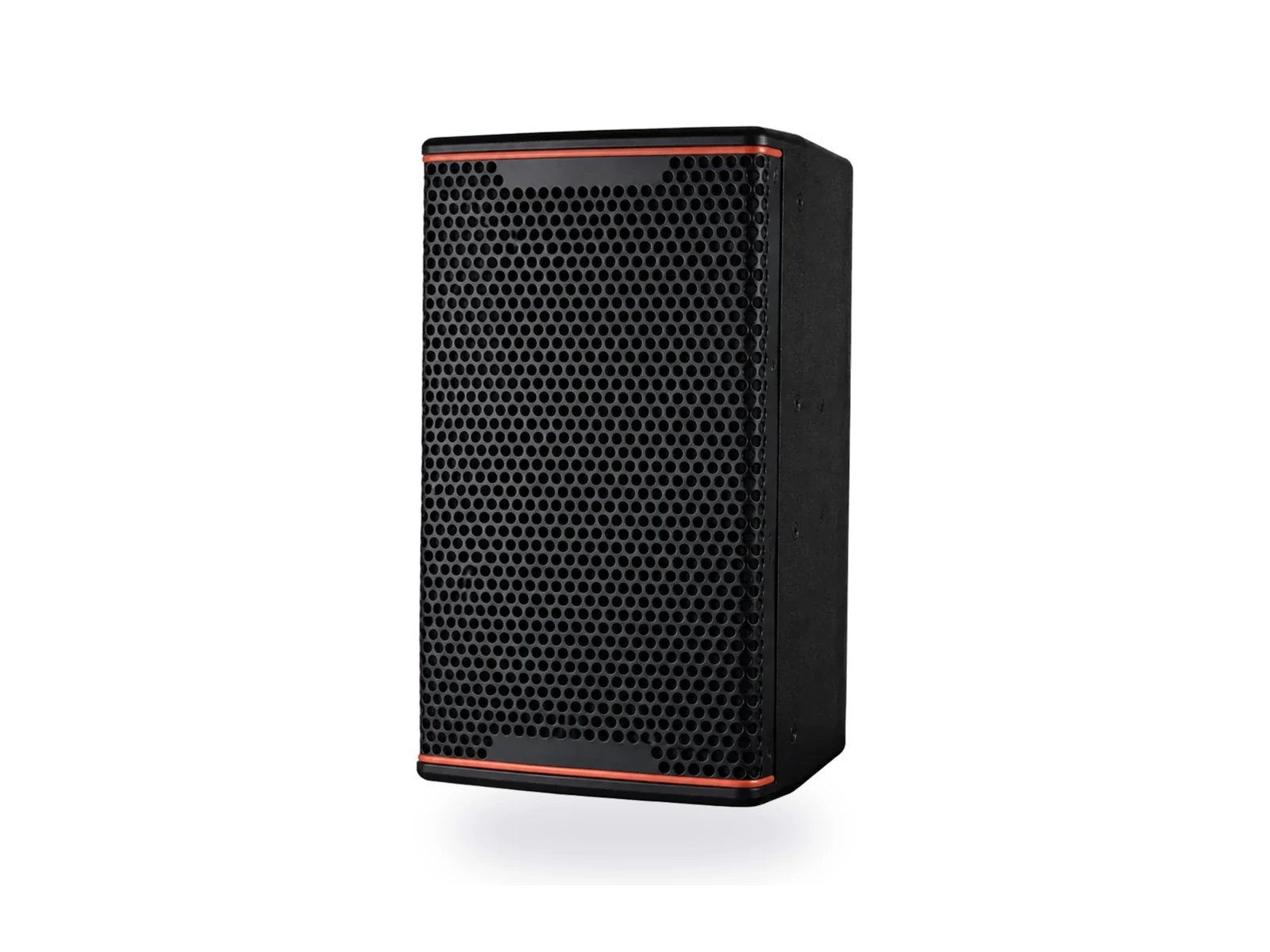

KP8052
- TypeSingle 12" Passive 2-Way Full-Range Karaoke Speaker
- Frequency80 Hz–20 kHz
- Performance125 dB / 131 dB Peak
- Configuration70° × 60°

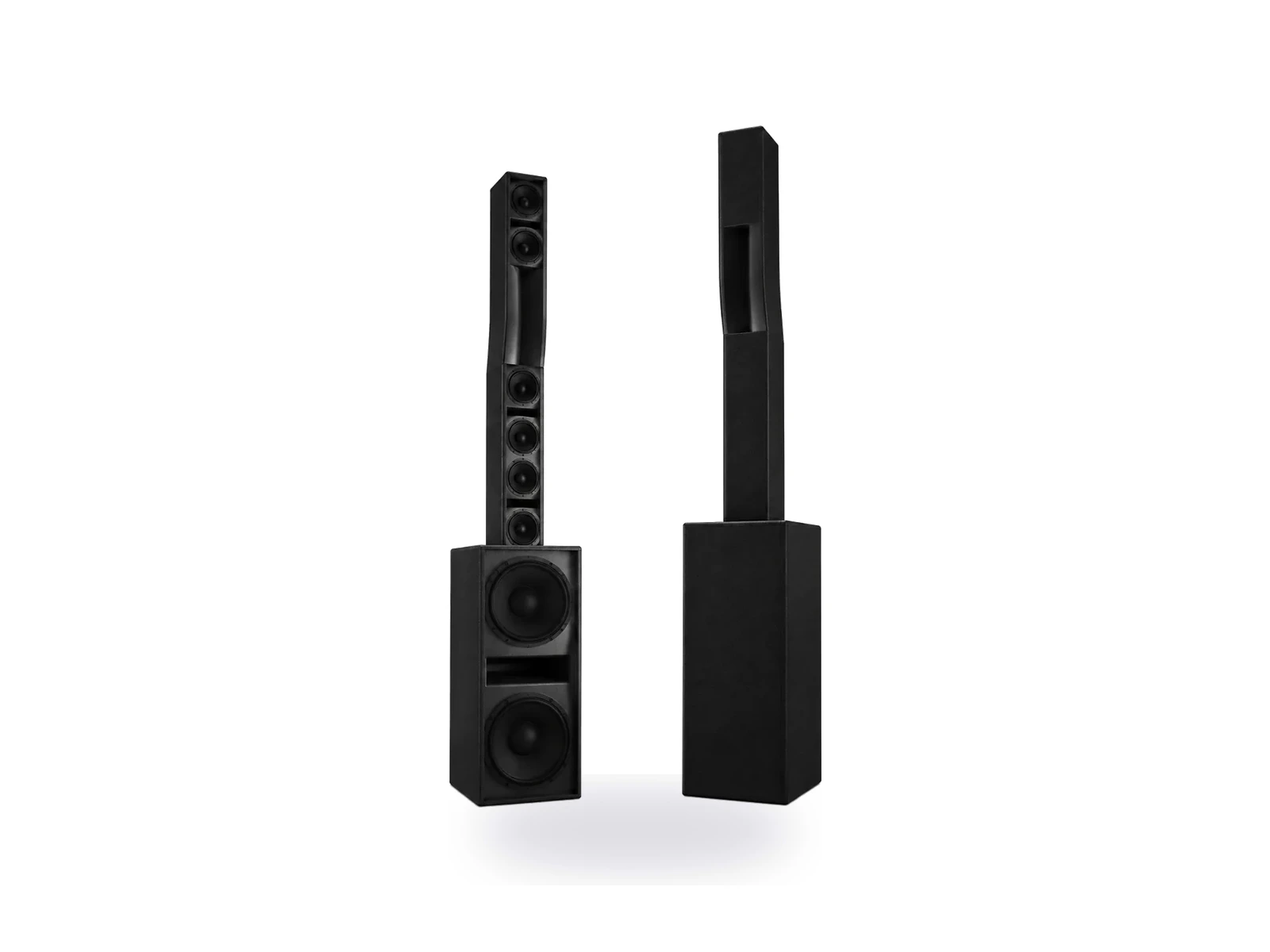

SYVA
- TypePassive 2-Way J-Curve Column Line Source Speaker
- Frequency87 Hz–20 kHz
- Performance137 dB
- Configuration140° H

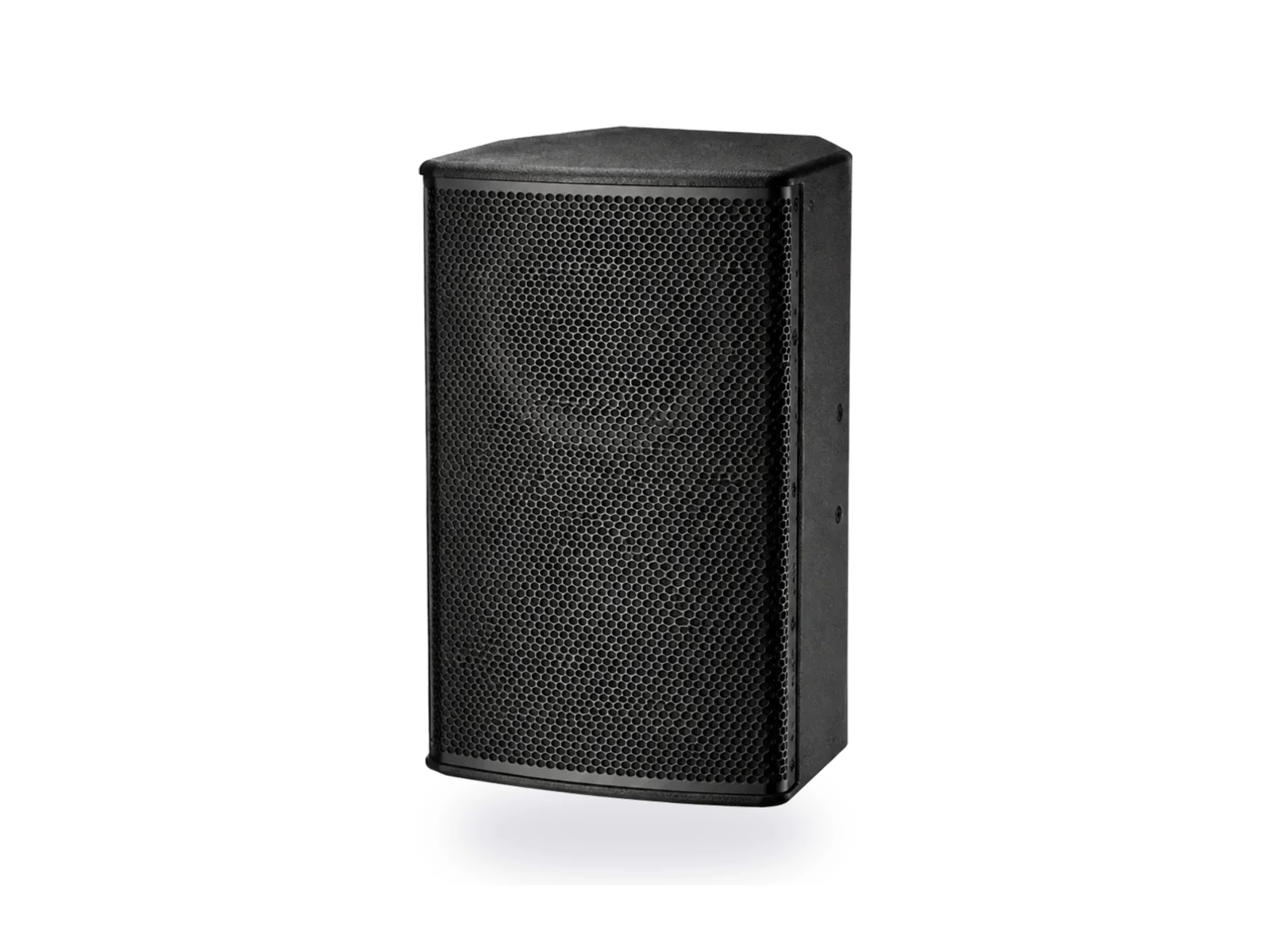

TR10
- TypeSingle 10" Passive 2-Way Stage Speaker
- Frequency65 Hz–20 kHz (-10 dB)
- Performance107 dB Peak
- Configuration8Ω

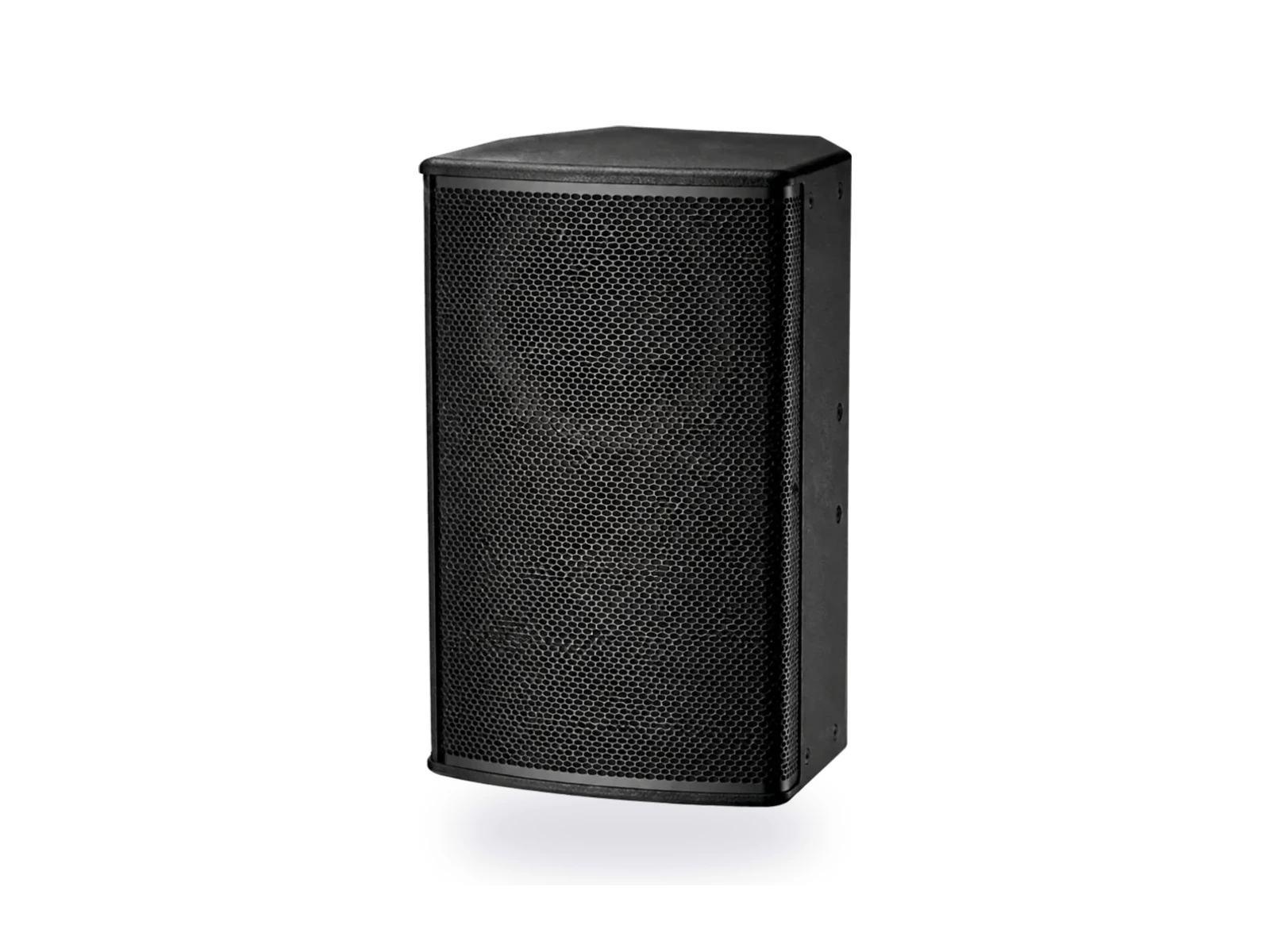

TR12
- TypeSingle 12" Passive 2-Way Full-Range Speaker
- Frequency40 Hz–18 kHz ±3 dB
- Performance133 dB Continuous / 142.5 dB Peak
- Configuration360 × 410 × 600 mm

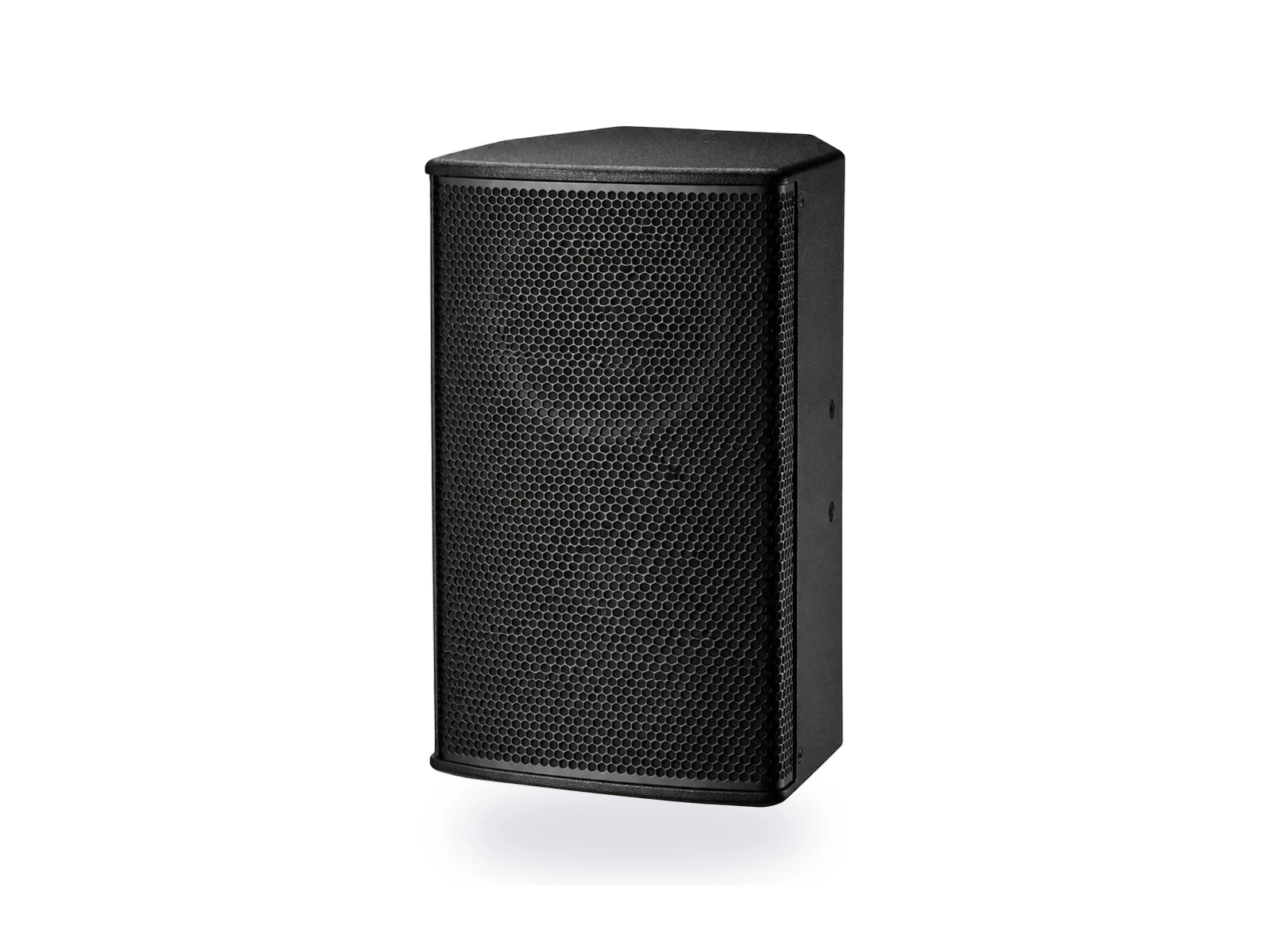

TR13
- TypeSingle 14" Passive 2-Way Full-Range Speaker
- Frequency58 Hz–19 kHz
- Performance128 dB
- Configuration90° H × 60° V

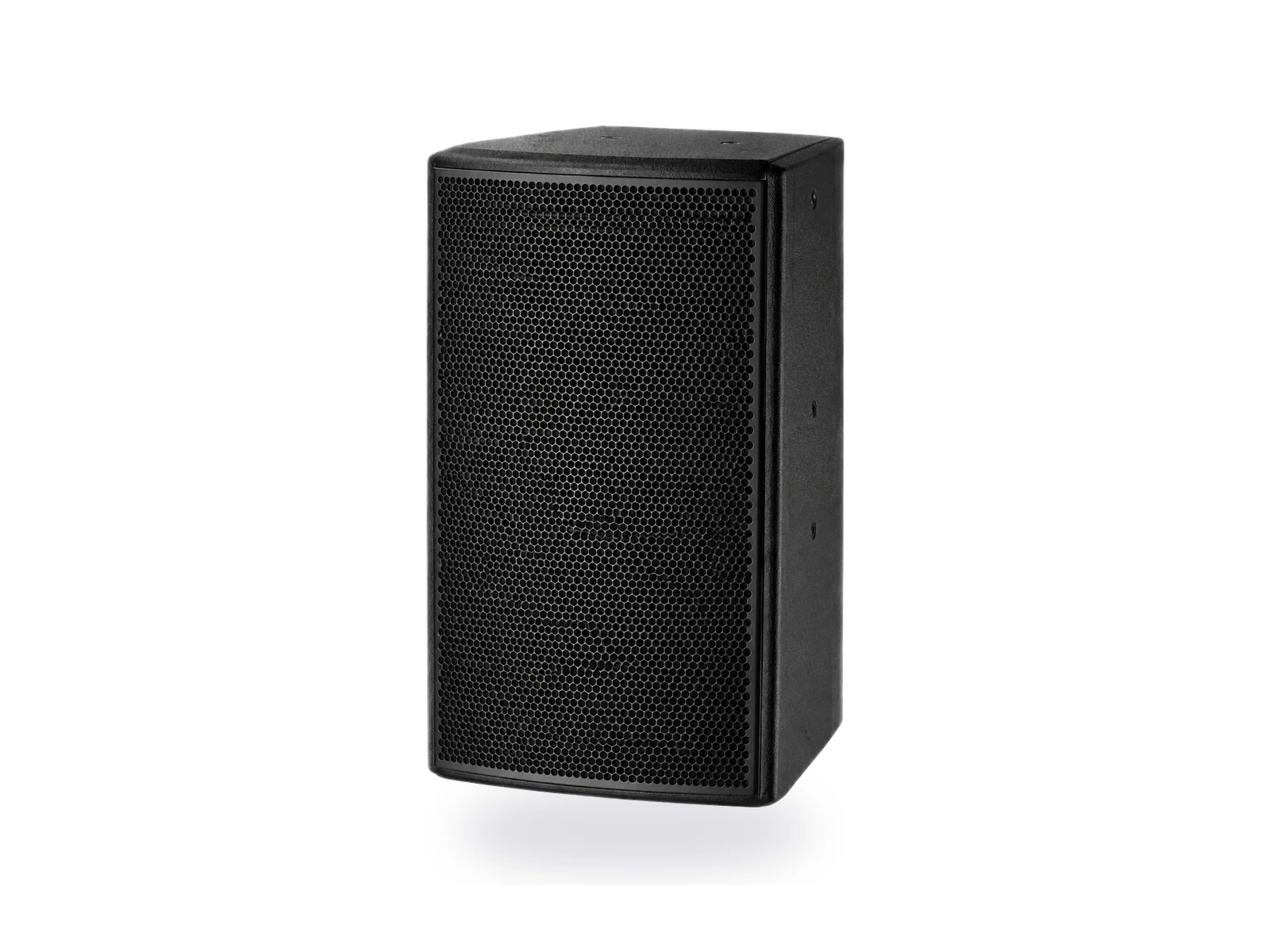

VR10
- TypeSingle 10" Passive 2-Way Full-Range Speaker
- Frequency55 Hz–18 kHz ±3 dB
- Performance120 dB Continuous / 126 dB Peak
- Configuration300 × 340 × 521 mm

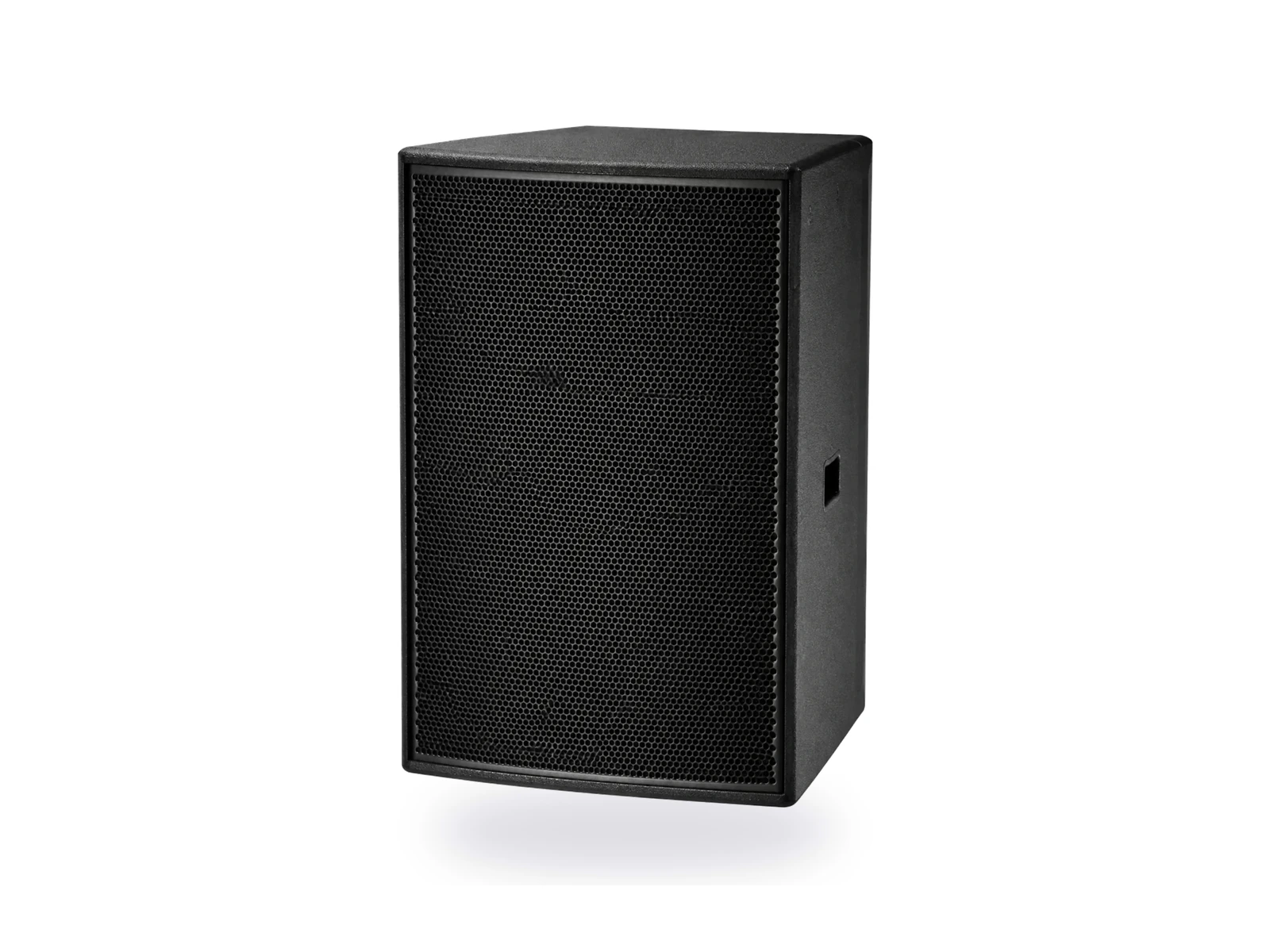

VR12
- TypeSingle 12" Passive 2-Way Full-Range Speaker
- Frequency55 Hz–18 kHz ±3 dB
- Performance123 dB Continuous / 129 dB Peak
- Configuration360 × 410 × 600 mm

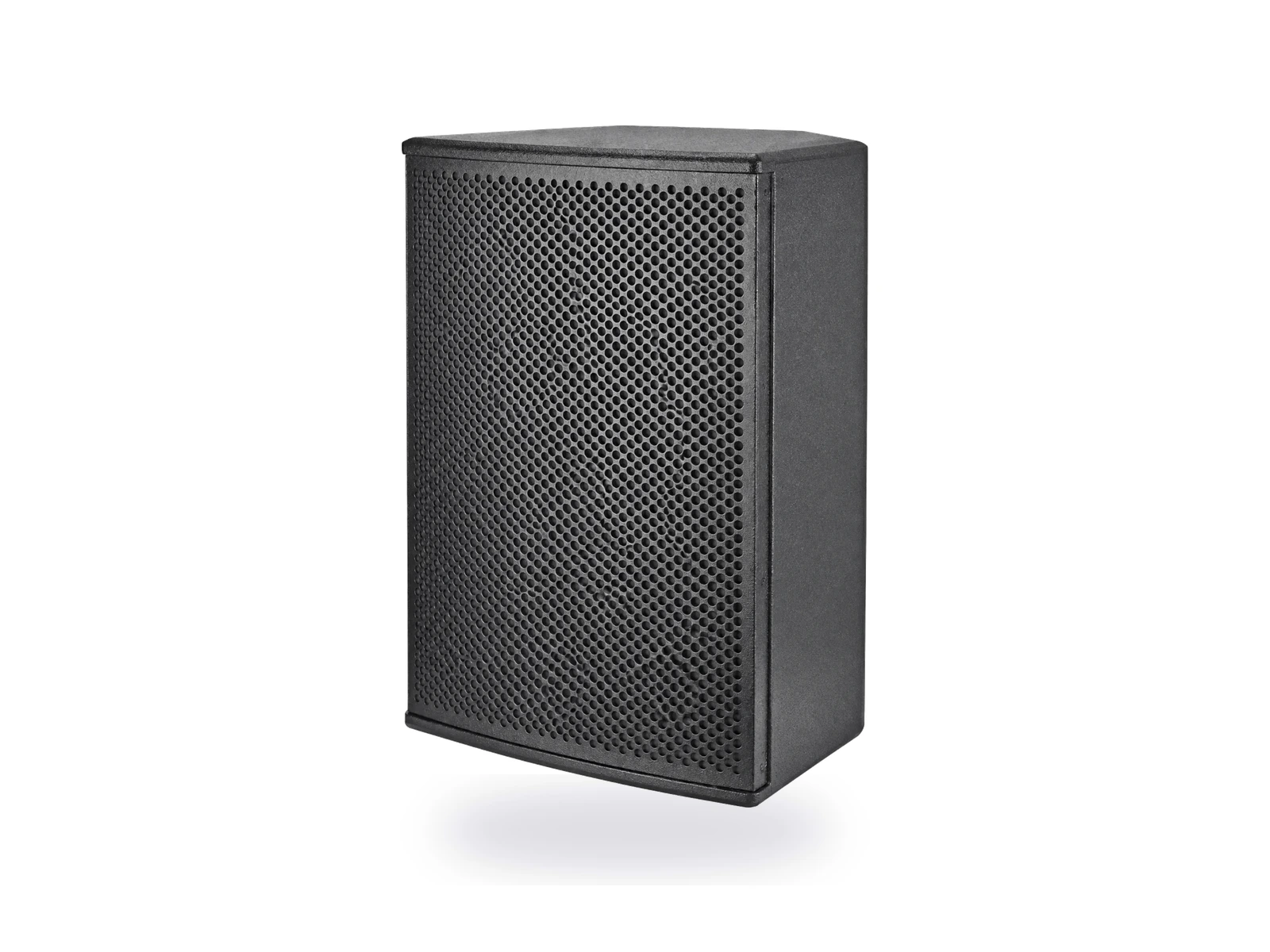

XD12
- TypeSingle 12" Passive 2-Way High-Output Speaker
- Frequency65 Hz–20 kHz
- Performance130 dB Peak
- Configuration80° × 50° Rotatable

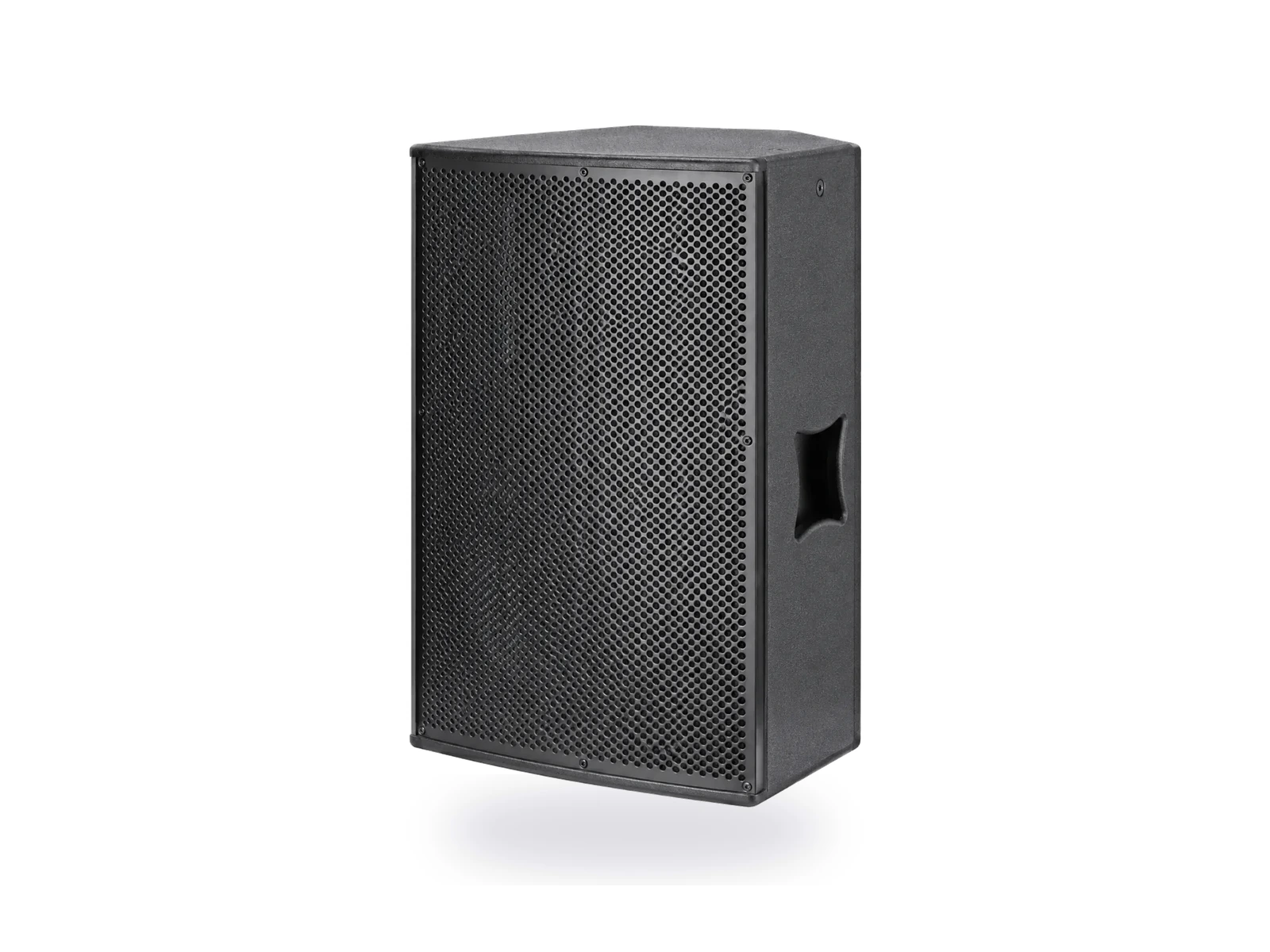

XD15
- TypeSingle 15" Passive 2-Way High-Output Speaker
- Frequency55 Hz–18 kHz
- Performance132 dB Peak
- Configuration80° × 50° Rotatable
Final configuration, lead time, packing and documents are confirmed against the selected model and order quantity.
SERIES PLATFORM
A professional audio platform for practical project decisions.
BOWEI AUDIO works with distributors, rental companies and system integrators. Start from the venue, system target and expected quantity, then compare the relevant models before an inquiry.
Product matching is more useful when coverage, rigging or installation constraints, amplifier pairing and transport requirements are clear from the beginning.
PRODUCT SELECTION
Start with the project conditions, then confirm the model.
Match cabinet format, coverage pattern, mounting position, system scale and acoustic target to the intended venue before ordering.
Venue and system target
Confirm the audience area, usage type, venue dimensions and required coverage before choosing cabinet format or configuration.
System compatibility
Review published specifications, amplifier pairing, rigging or mounting needs, and supporting products for the intended solution.
Order and delivery details
Discuss quantity, branding scope, packing method, delivery destination and requested documentation before production is scheduled.
Discuss your applicationSend requirements
MODEL DATA
Published technical specifications at a glance.
Scroll horizontally to compare all models. Confirm final drawings, accessories and current production configuration with BOWEI AUDIO before ordering.
| Specification | ARCS II | F12+ | F15+ | KP052 | KP8052 | SYVA | TR10 | TR12 | TR13 | VR10 | VR12 | XD12 | XD15 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product type | Single 15" 2-Way Constant-Curvature Line Source Speaker | Single 12" Passive 2-Way Full-Range Speaker | Single 15" Passive 2-Way Full-Range Speaker | Single 12" Passive 2-Way Full-Range Karaoke Speaker | Single 12" Passive 2-Way Full-Range Karaoke Speaker | Passive 2-Way J-Curve Column Line Source Speaker | Single 10" Passive 2-Way Stage Speaker | Single 12" Passive 2-Way Full-Range Speaker | Single 14" Passive 2-Way Full-Range Speaker | Single 10" Passive 2-Way Full-Range Speaker | Single 12" Passive 2-Way Full-Range Speaker | Single 12" Passive 2-Way High-Output Speaker | Single 15" Passive 2-Way High-Output Speaker |
| LF | 1 × 15" Neodymium Driver | 1 × 12" | 1 × 15" | 1 × 12" | 1 × 12" | — | 1 × 10" | 1 × 12" | 1 × 14" | 1 × 10" | 1 × 12" | 1 × 12" Neodymium Driver | 1 × 15" Neodymium Driver |
| HF | 1 × 3" Compression Driver | 1 × 1" Compression Driver | 1 × 2.6" Voice Coil Compression Driver | 1 × 1.5" Compression Driver | 1 × 1.5" Compression Driver | 3 × 1.75" Compression Drivers | 1 × 1" | 1 × 1" | 1 × 3" Compression Driver | 1 × 1" | 1 × 1" | 1 × 1" Compression Driver | 1 × 1.4" Compression Driver |
| Frequency Range | 50 Hz–20 kHz | — | 48 Hz–18 kHz | — | 55 Hz–20 kHz | 87 Hz–20 kHz | — | — | — | — | — | — | — |
| Frequency Response | — | 65 Hz–18 kHz | 65 Hz–18 kHz | 55 Hz–18 kHz ±3 dB | 80 Hz–20 kHz | — | 65 Hz–20 kHz (-10 dB) | 40 Hz–18 kHz ±3 dB | 58 Hz–19 kHz | 55 Hz–18 kHz ±3 dB | 55 Hz–18 kHz ±3 dB | 65 Hz–20 kHz | 55 Hz–18 kHz |
| Max SPL | 142 dB | 120 dB Continuous / 126 dB Peak | 125 dB Peak | 123 dB Continuous / 129 dB Peak | 125 dB / 131 dB Peak | 137 dB | 107 dB Peak | 133 dB Continuous / 142.5 dB Peak | 128 dB | 120 dB Continuous / 126 dB Peak | 123 dB Continuous / 129 dB Peak | 130 dB Peak | 132 dB Peak |
| Coverage | 22.5° Symmetrical × 60° Asymmetrical | 80° × 50° | — | 70° × 60° | 70° × 60° | 140° H | — | — | 90° H × 60° V | — | — | 80° × 50° Rotatable | 80° × 50° Rotatable |
| Power Handling | LF 600 W RMS / HF 100 W RMS | 300 W AES / 1200 W Peak | 650 W Continuous / 1300 W Program / 2600 W Peak | 400 W Rated / 1600 W Peak | 500 W Continuous / 1000 W Program / 2000 W Peak | — | 400 W Rated / 800 W Program / 1600 W Peak | — | — | — | — | LF 400 W AES / 1600 W Peak HF 50 W AES / 200 W Peak | LF 600 W AES / 2400 W Peak HF 80 W AES / 320 W Peak |
| Nominal Impedance | LF 8Ω / HF 8Ω | 8Ω | 8Ω | 8Ω | 8Ω | 8Ω | 8Ω | — | 8Ω | — | — | LF 8Ω / HF 16Ω | LF 8Ω / HF 16Ω |
| Dimensions | 820 × 439 × 652 mm | 398 × 571 × 365 mm | 470 × 690 × 440 mm | 360 × 410 × 600 mm | 604 × 350 × 397 mm | 1301 × 144 × 209 mm | 528 × 308 × 328 mm | 360 × 410 × 600 mm | 650 × 400 × 425 mm | 300 × 340 × 521 mm | 360 × 410 × 600 mm | 360 × 571 × 341 mm | 429 × 690 × 414 mm |
| Net Weight | 50 kg | 21 kg | — | 23 kg | 17.7 kg | 21 kg | 16 kg | 28 kg | 28 kg | 14 kg | 23 kg | 20.8 kg | 34 kg |
APPLICATION FIT
Match product decisions to the real working environment.
Application information helps our team discuss suitable models, supporting products and technical documentation more efficiently.
Rental and event production
Review product selection against the venue, usage cycle, installation approach and delivery requirements.
Discuss this applicationFixed installation
Review product selection against the venue, usage cycle, installation approach and delivery requirements.
Discuss this applicationVenue sound reinforcement
Review product selection against the venue, usage cycle, installation approach and delivery requirements.
Discuss this applicationPRODUCTION & DELIVERY
Bring the model, order and export details together.
We support model discussion, OEM / ODM scope, product inspection preparation, export packing coordination and repeat-order consistency.
Technical confirmation
Confirm product selection, core specifications and the intended application before quotation.
OEM / ODM discussion
Review finish, labels, branding and packaging within a confirmed project scope.
Inspection preparation
Align order details, packing method and shipment documentation prior to dispatch.
Repeat-order support
Keep the selected model and packing requirements consistent for future purchasing.
FAQ
Questions buyers usually confirm first.
For model-specific drawings, certification needs, lead time or system configuration, include your project details with the inquiry.
How do I choose the right professional speakers model?
Start with the application, venue size, system configuration, target quantity and delivery destination. We can then discuss a suitable model and supporting information.
Can I request model-specific specifications and drawings?
Yes. Send the model and project context. Our team can confirm the current technical documents available before you finalize a configuration.
Do you support OEM / ODM and export packing?
OEM / ODM scope, labels, finish, packaging and commercial documents depend on the model, quantity and destination. Confirm these items before production.
