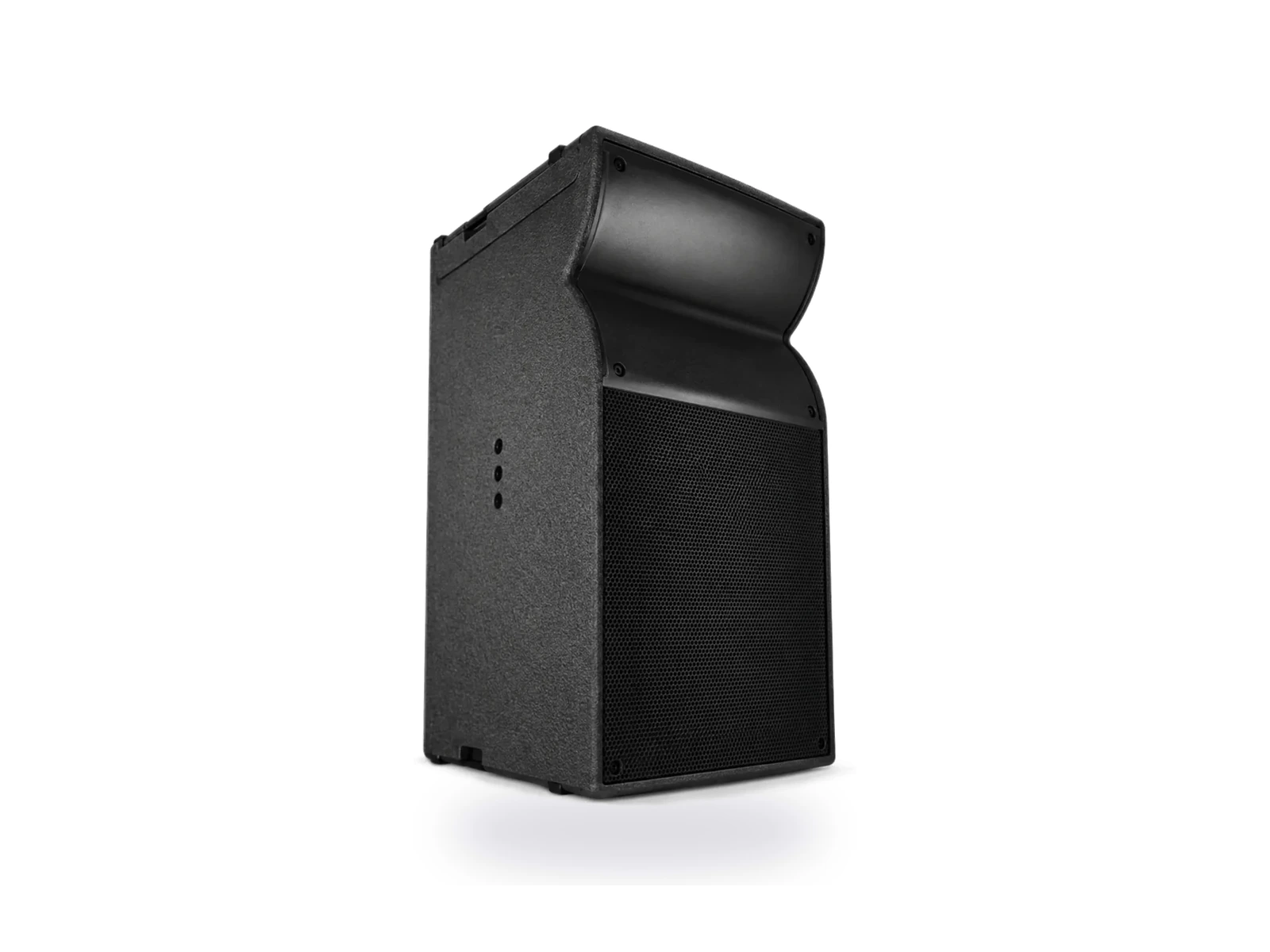

A15-F
- TypeSingle 15" Passive 2-Way Constant Curvature Speaker
- Frequency41 Hz–20 kHz
- Performance144 dB
- Configuration70° / 90° / 110° × 10°
Home / Products / Line Array Systems
BOWEI AUDIO · PRODUCT SERIES
Line Array Systems
Professional. Scalable. Reliable.
Professional line array systems for touring, rental fleets and fixed-installation projects. Engineered for powerful, consistent sound and scalable solutions for events of any size.
- 13 ModelsPublished range
- OEM / ODMAvailable
- System MatchingSupport
13 PUBLISHED MODELS
All Line Array Speakers
Compare the published product range using current CMS specifications. Open a model page for complete details or send your project requirements for a quotation.

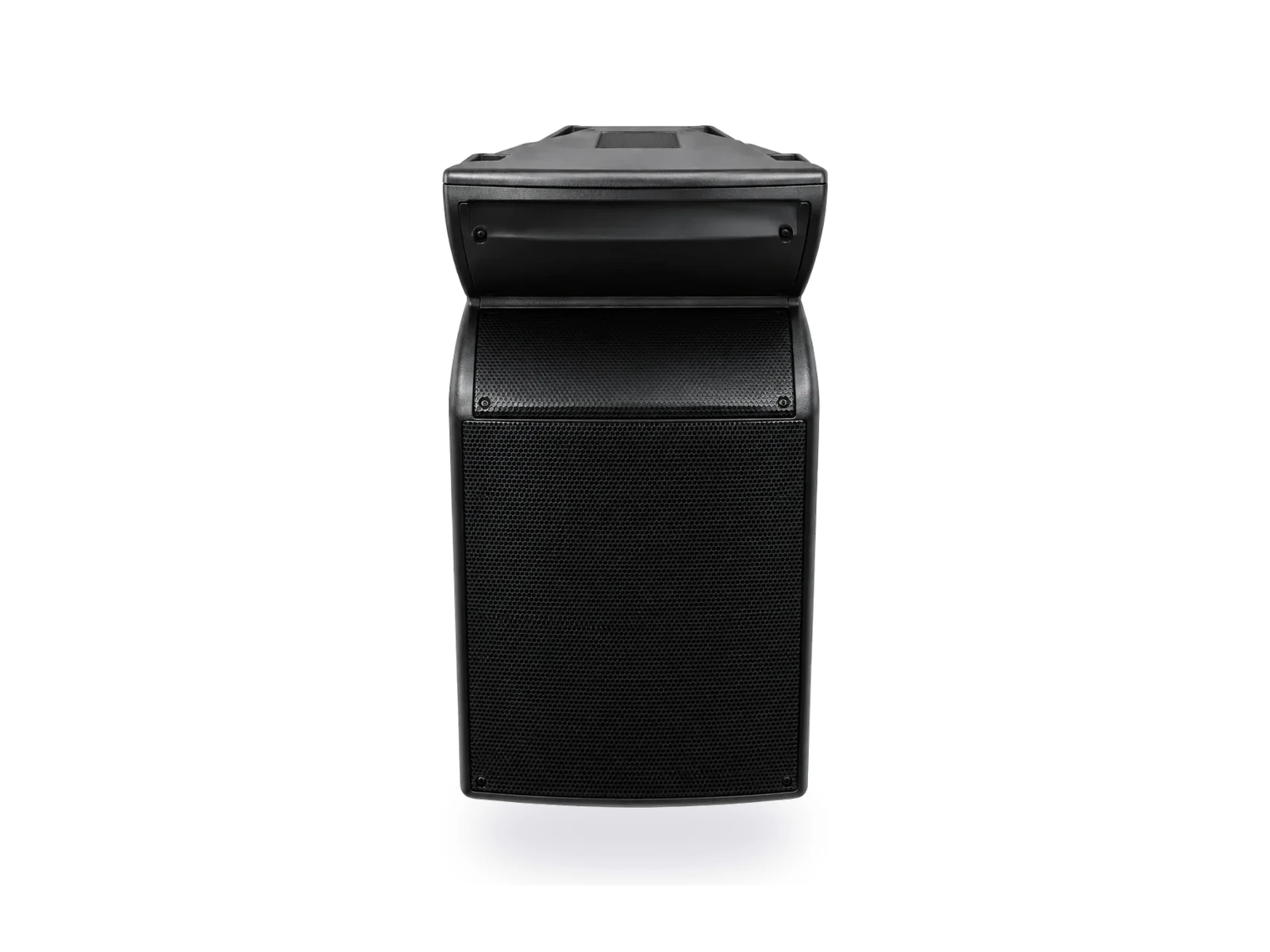

A15-W
- TypeSingle 15" Passive 2-Way Constant Curvature Speaker
- Frequency42 Hz–20 kHz
- Performance141 dB
- Configuration70° / 90° / 110° × 30°

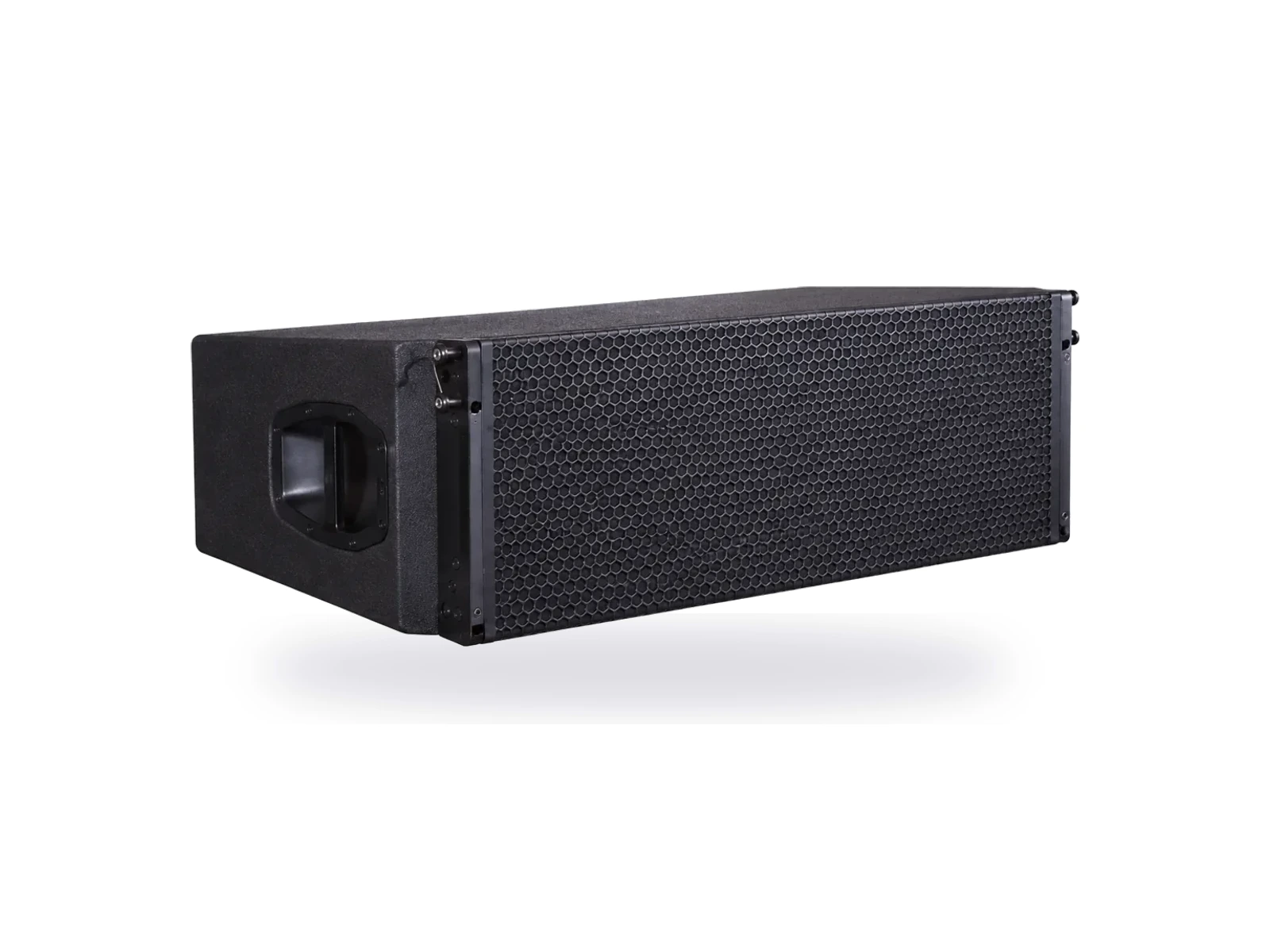

J8
- TypeDual 12" Passive 3-Way Line Array Speaker
- Frequency48 Hz–17 kHz
- Performance145 dB
- Configuration80°

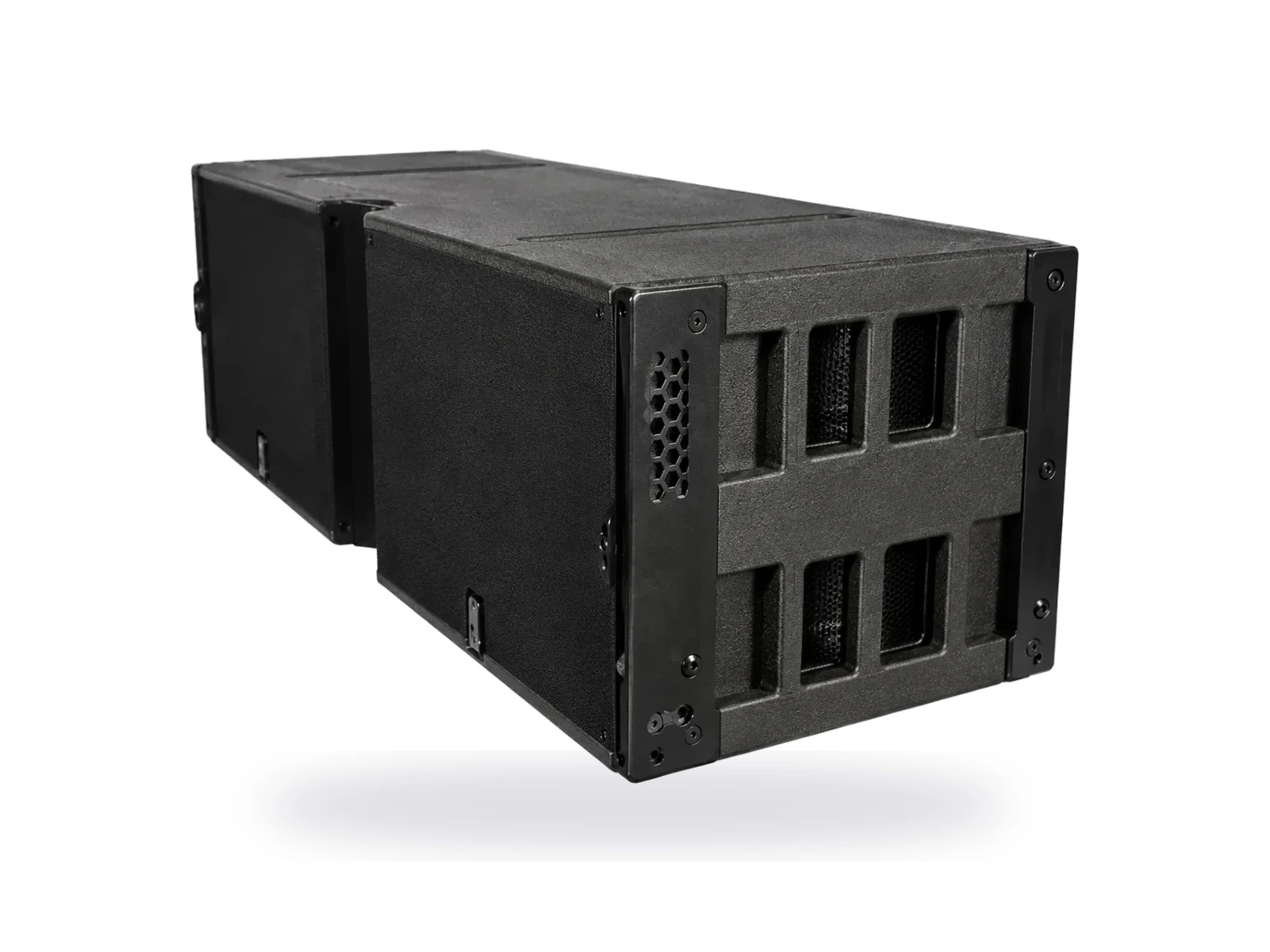

K1
- TypeDual 15" Passive 3-Way Line Array Speaker
- Frequency35 Hz–20 kHz
- Performance149 dB
- Configuration90°

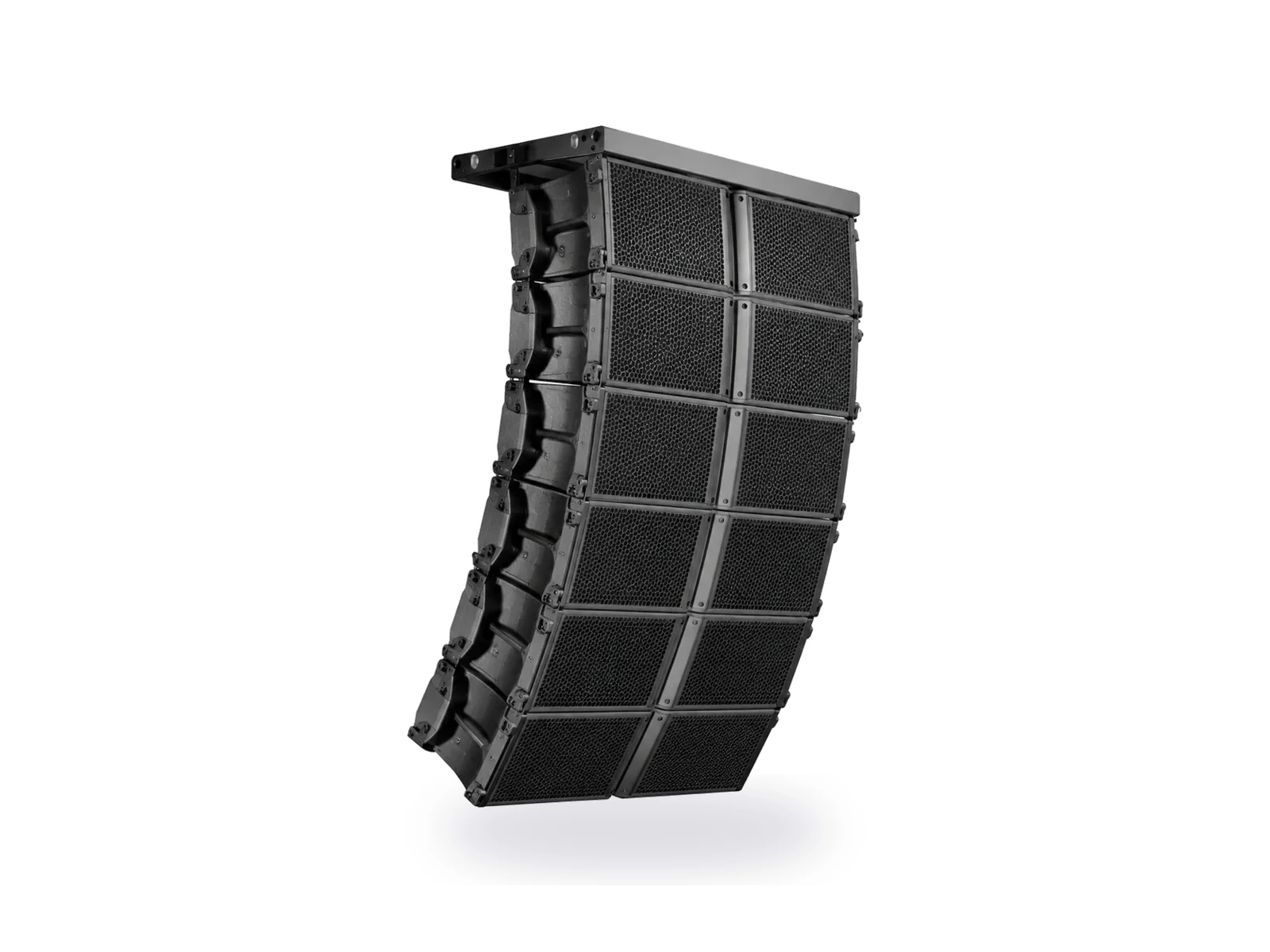

K2
- TypeDual 12" Passive 3-Way Line Array Speaker
- Frequency35 Hz–20 kHz
- Performance147 dB
- Configuration70° / 90° / 110°

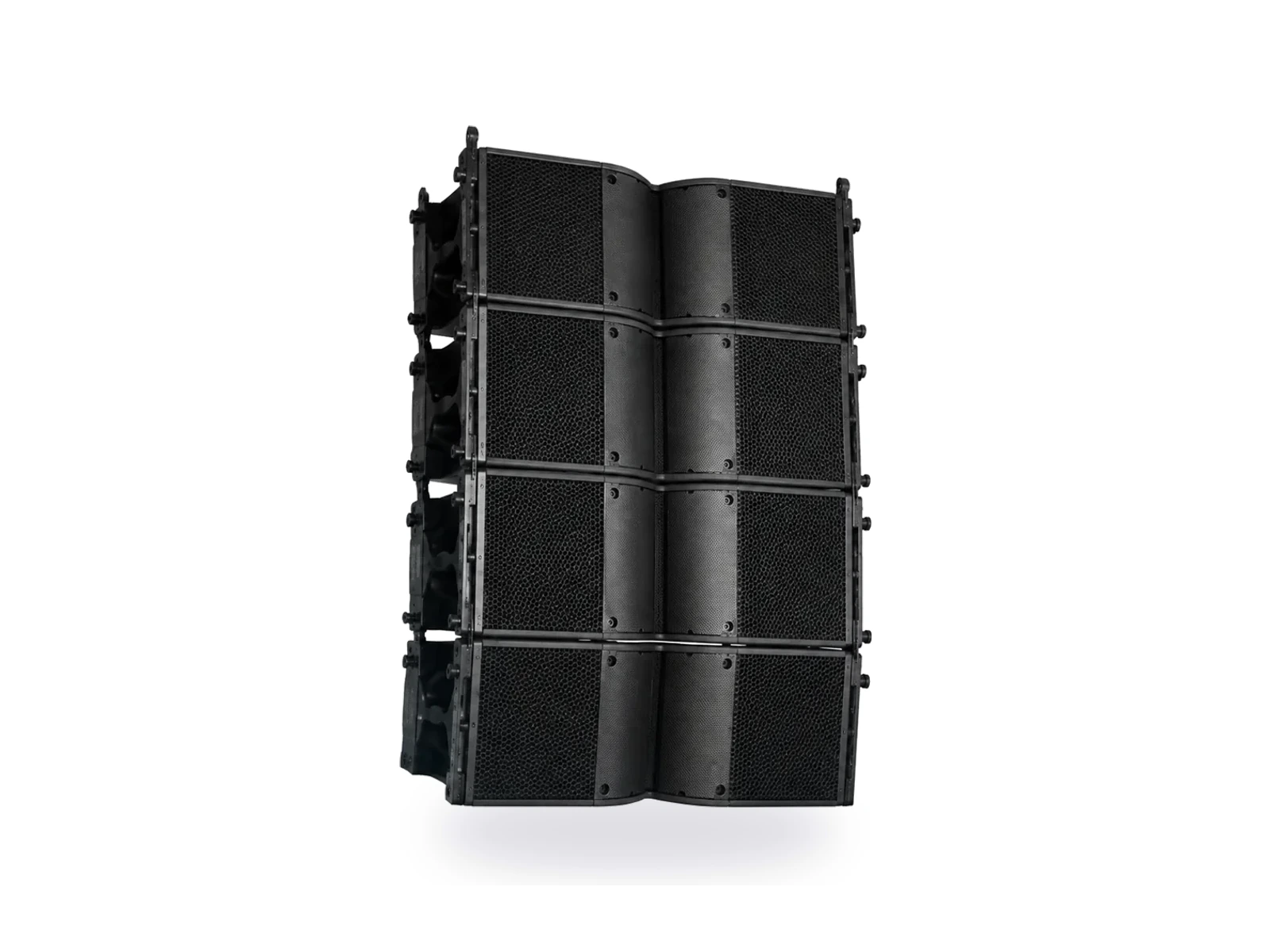

K3
- TypeDual 12" Passive 2-Way Line Array Speaker
- Frequency42 Hz–20 kHz
- Performance143 dB
- Configuration70° / 90° / 110°

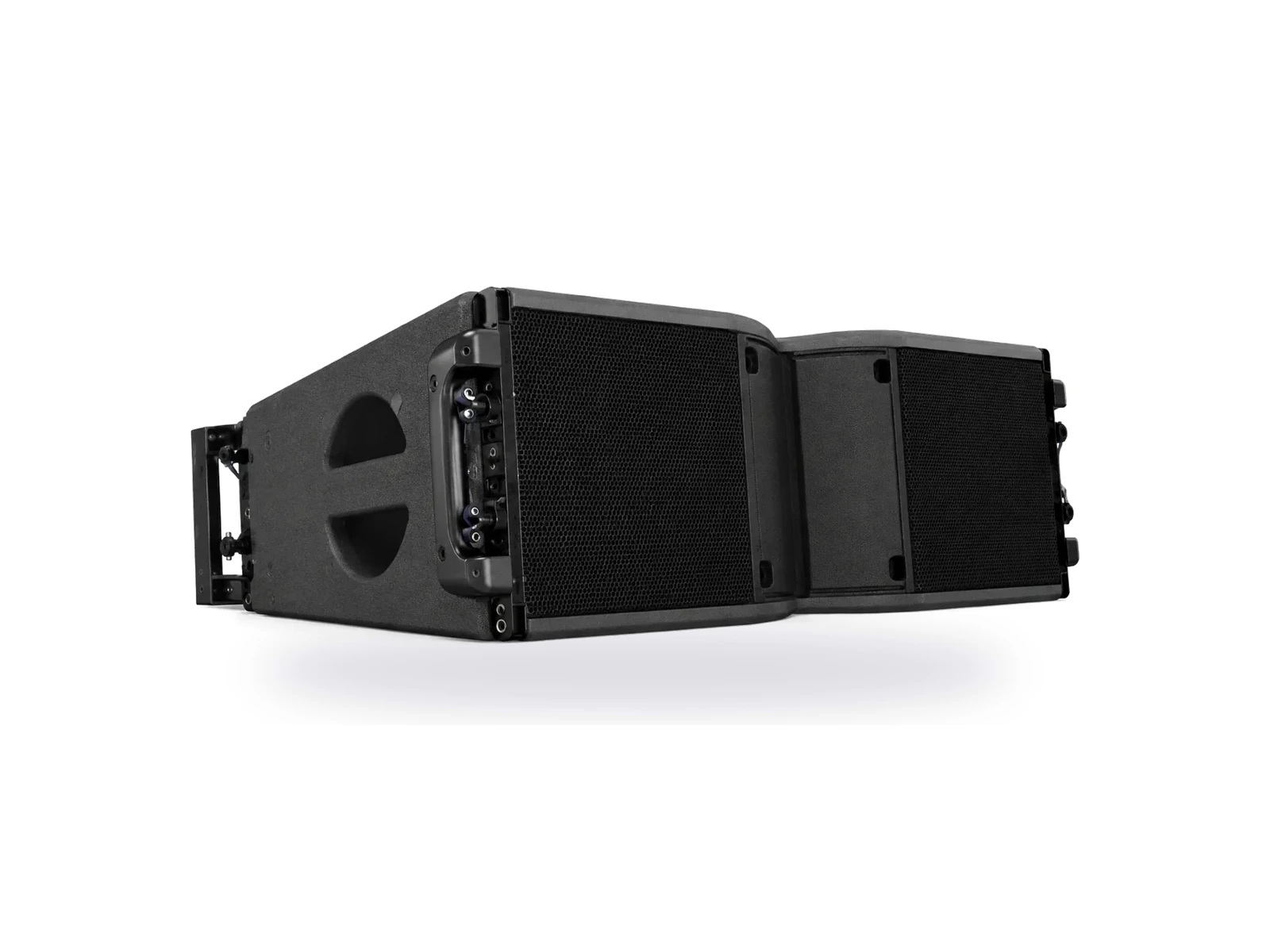

KARA2
- TypeDual 8" Passive Line Array Speaker
- Frequency55 Hz–20 kHz
- Performance142 dB
- Configuration70° / 90° / 110°

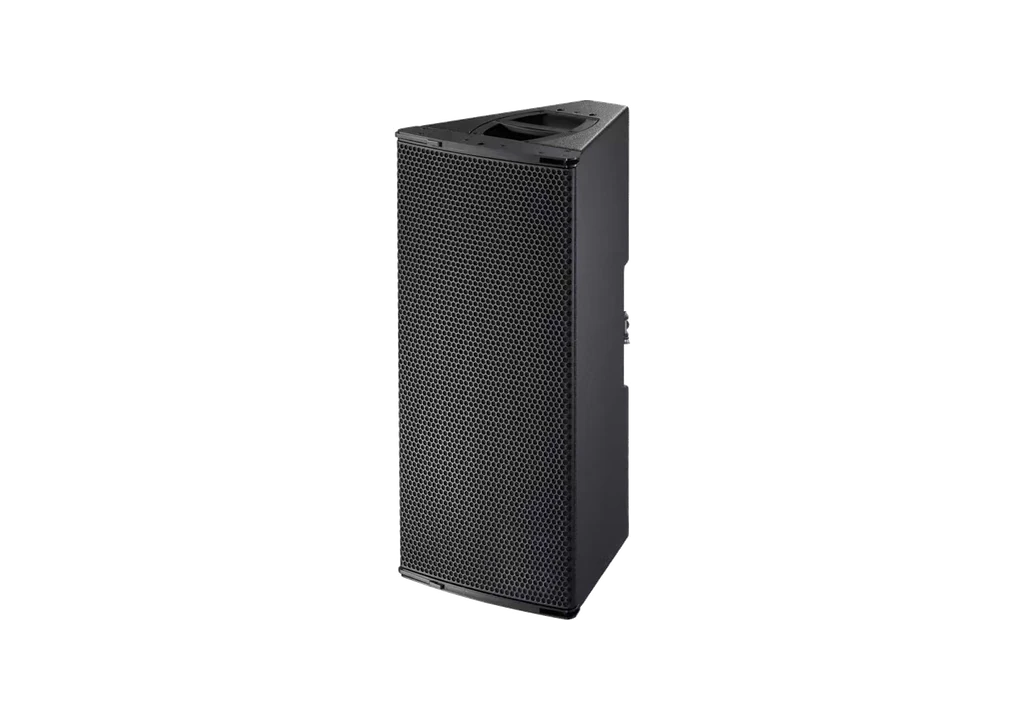

LA60
- TypeDual 10" Passive 2-Way Array Speaker
- Frequency60 Hz–18 kHz
- Performance139 dB
- Configuration60° × 30°

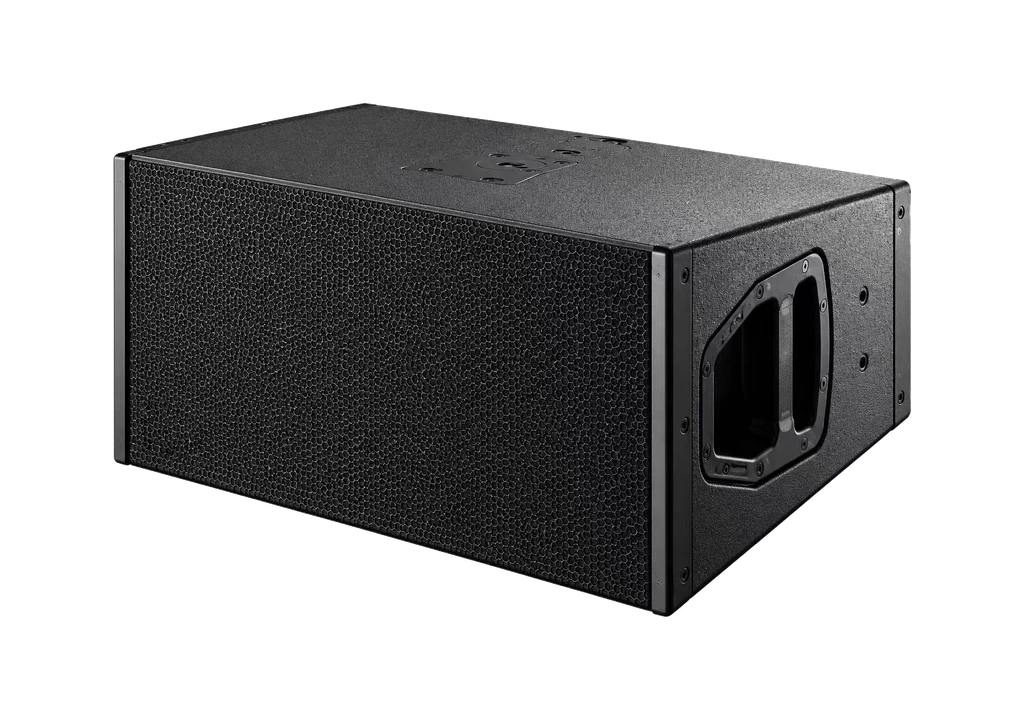

Q1
- TypeDual 10" Passive 2-Way Line Array Speaker
- Frequency60 Hz–17 kHz
- Performance139 dB
- Configuration75° × 15°

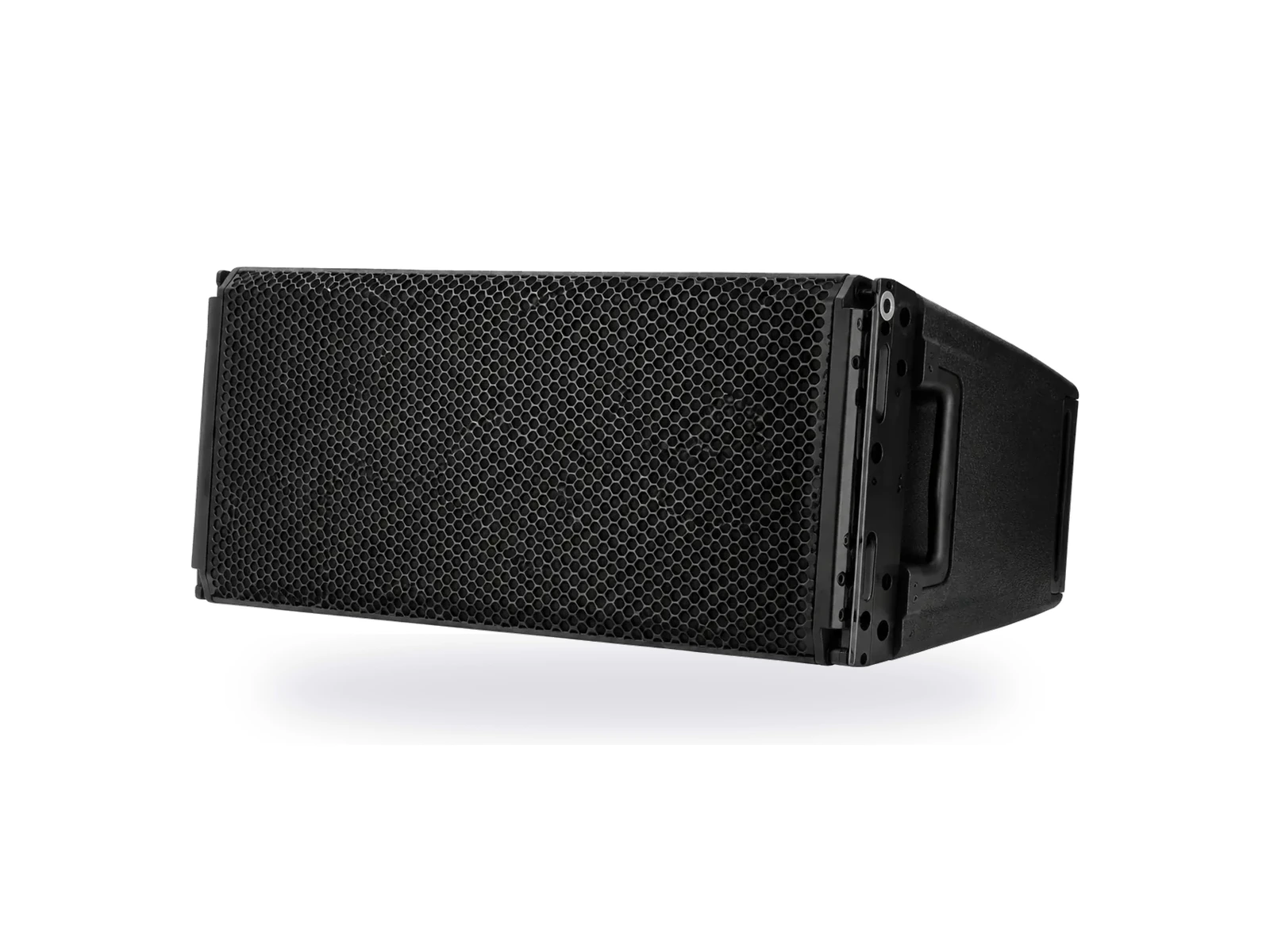

RCF-HD30
- TypeDual 10" Active 2-Way Line Array Speaker
- Performance137 dB
- HF1 × 1.4" Compression Driver
- LF2 × 10" Neodymium Woofers

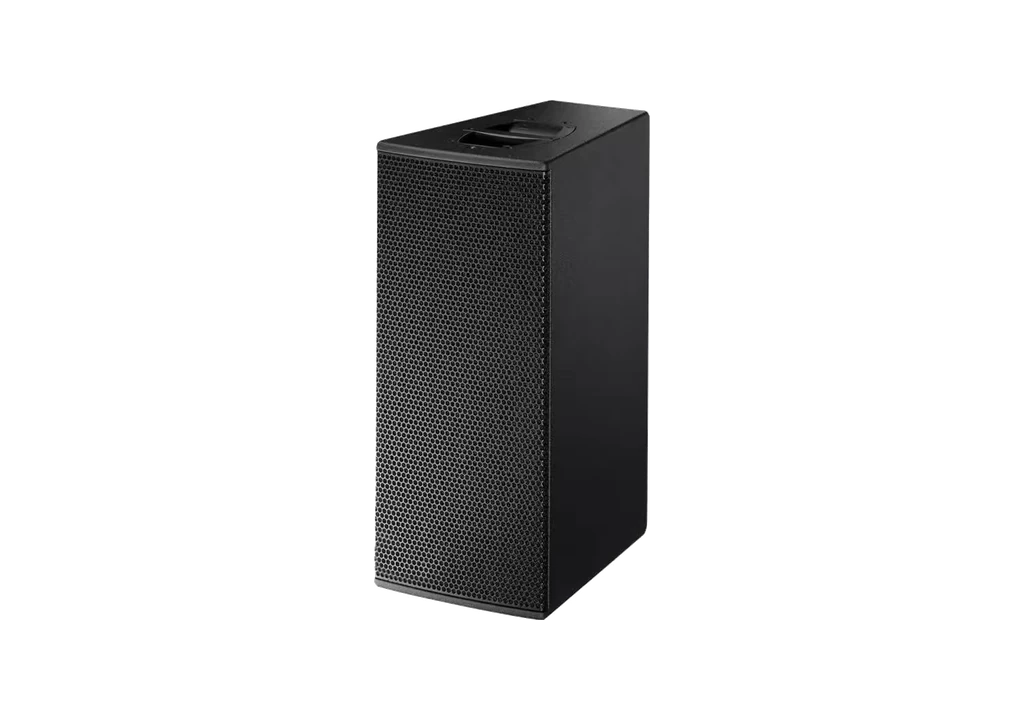

V7P
- TypeDual 10" Passive 3-Way Point Source Speaker
- Frequency59 Hz–18 kHz
- Performance140 dB
- Configuration75° × 40°

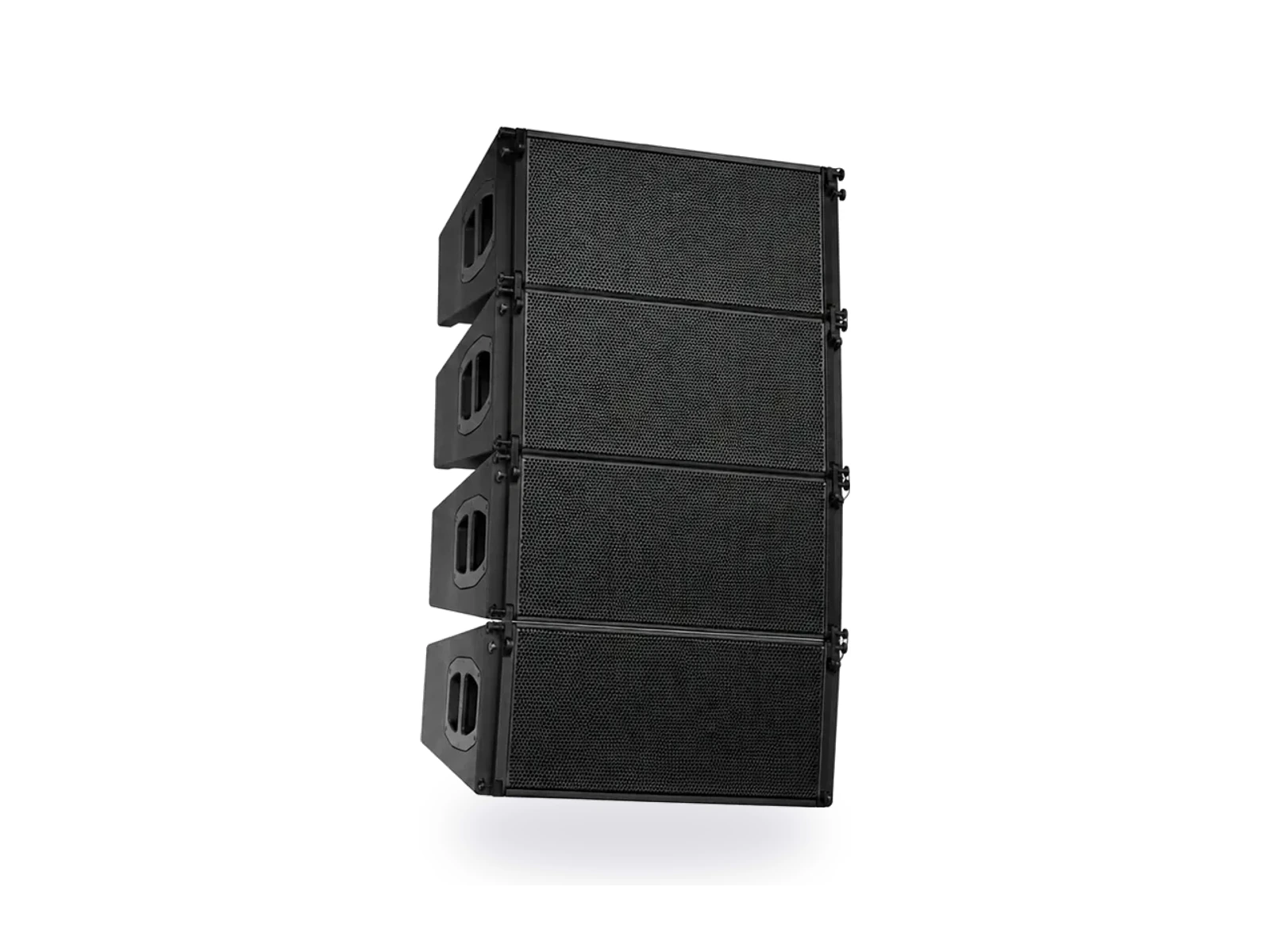

V8
- TypeDual 10" Passive 3-Way Line Array Speaker
- Frequency67 Hz–18 kHz
- Performance142 dB
- Configuration80°

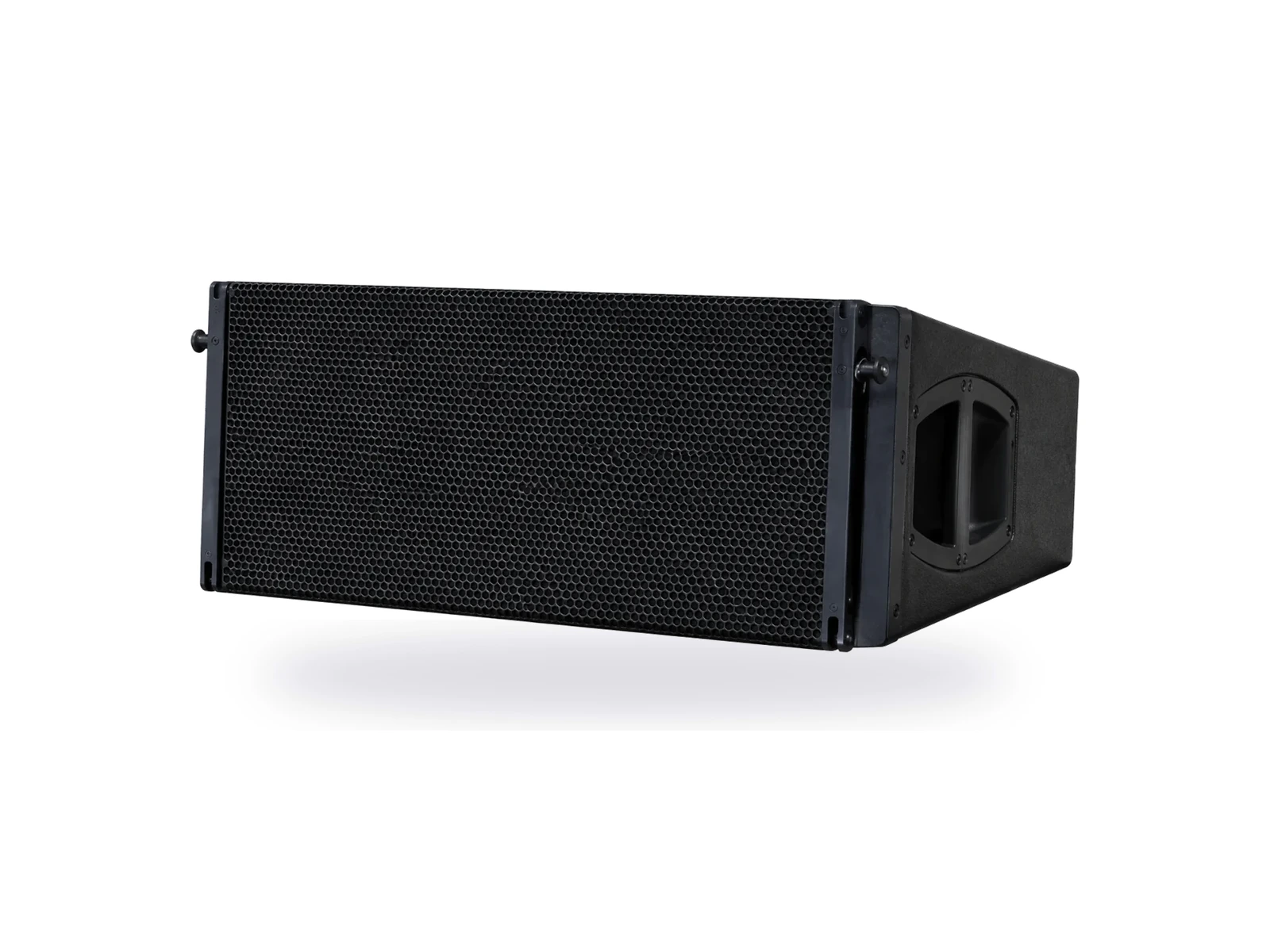

Y8
- TypeDual 8" Passive 2-Way Line Array Speaker
- Frequency54 Hz–19 kHz
- Performance139 dB
- Configuration80°
LINE ARRAY SYSTEMS
Professional line array solutions for touring, rental and installation.
Explore BOWEI AUDIO line array systems for demanding live sound projects. Compare cabinet formats, then discuss the system scale, rigging and supporting equipment required for your application.
Watch the listening-room demonstration to see the product presentation and array hardware up close before selecting the models for your project.
Send your equipment requirementsPRODUCT SELECTION
Start with the project conditions, then confirm the model.
Confirm venue depth, throw distance, audience area, rigging method and subwoofer requirement before choosing a system configuration.
Venue and system target
Confirm the audience area, usage type, venue dimensions and required coverage before choosing cabinet format or configuration.
System compatibility
Review published specifications, amplifier pairing, rigging or mounting needs, and supporting products for the intended solution.
Order and delivery details
Discuss quantity, branding scope, packing method, delivery destination and requested documentation before production is scheduled.
K1 Line Array SystemSend requirements
MODEL DATA
Published technical specifications at a glance.
Scroll horizontally to compare all models. Confirm final drawings, accessories and current production configuration with BOWEI AUDIO before ordering.
| Specification | A15-F | A15-W | J8 | K1 | K2 | K3 | KARA2 | LA60 | Q1 | RCF-HD30 | V7P | V8 | Y8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product type | Single 15" Passive 2-Way Constant Curvature Speaker | Single 15" Passive 2-Way Constant Curvature Speaker | Dual 12" Passive 3-Way Line Array Speaker | Dual 15" Passive 3-Way Line Array Speaker | Dual 12" Passive 3-Way Line Array Speaker | Dual 12" Passive 2-Way Line Array Speaker | Dual 8" Passive Line Array Speaker | Dual 10" Passive 2-Way Array Speaker | Dual 10" Passive 2-Way Line Array Speaker | Dual 10" Active 2-Way Line Array Speaker | Dual 10" Passive 3-Way Point Source Speaker | Dual 10" Passive 3-Way Line Array Speaker | Dual 8" Passive 2-Way Line Array Speaker |
| LF | 1 × 15" | 1 × 15" | 2 × 12" | 2 × 15" | 2 × 12" | 2 × 12" | 2 × 8" | 2 × 10" | 2 × 10" | 2 × 10" Neodymium Woofers | 2 × 10" | 2 × 10" | 2 × 8" |
| MF | — | — | 1 × 10" | 4 × 6.5" | 4 × 6.5" | — | — | — | — | — | 1 × 8" | 1 × 8" | — |
| HF | 1 × 3" Compression Driver | 1 × 3" Compression Driver | 2 × 1.4" Compression Drivers | 3 × 3" Compression Drivers | 2 × 3" Compression Drivers | 1 × 4" Compression Driver | 1 × 3" Compression Driver | 1 × 1.4" Compression Driver | 1 × 1.3" Compression Driver | 1 × 1.4" Compression Driver | 1 × 1.4" Compression Driver | 2 × 1.4" Compression Drivers | 1 × 1.4" Compression Driver |
| Frequency Range | 41 Hz–20 kHz | 42 Hz–20 kHz | — | 35 Hz–20 kHz | 35 Hz–20 kHz | 42 Hz–20 kHz | 55 Hz–20 kHz | — | — | — | — | — | — |
| Frequency Response | — | — | 48 Hz–17 kHz | — | — | — | — | 60 Hz–18 kHz | 60 Hz–17 kHz | — | 59 Hz–18 kHz | 67 Hz–18 kHz | 54 Hz–19 kHz |
| Max SPL | 144 dB | 141 dB | 145 dB | 149 dB | 147 dB | 143 dB | 142 dB | 139 dB | 139 dB | 137 dB | 140 dB | 142 dB | 139 dB |
| Coverage | 70° / 90° / 110° × 10° | 70° / 90° / 110° × 30° | 80° | 90° | 70° / 90° / 110° | 70° / 90° / 110° | 70° / 90° / 110° | 60° × 30° | 75° × 15° | — | 75° × 40° | 80° | 80° |
| Nominal Impedance | 8Ω | 8Ω | — | LF 2 × 8Ω / MF 8Ω / HF 8Ω | LF 2 × 8Ω / MF 8Ω / HF 16Ω | LF 8Ω / HF 8Ω | LF 8Ω / HF 8Ω | 8Ω | — | — | — | 8Ω | 8Ω |
| Dimensions | 764 × 427 × 522 mm | 764 × 424 × 525 mm | — | 1342 × 438 × 520 mm | 1338 × 354 × 400 mm | — | — | — | 580 × 308 × 410 mm | — | — | — | — |
| Net Weight | 35 kg | 33 kg | 60 kg | 106 kg | 56 kg | approx. 43 kg | 26 kg | 23 kg | 22 kg | — | 33 kg | approx. 34 kg | 20 kg |
APPLICATION FIT
Match product decisions to the real working environment.
Application information helps our team discuss suitable models, supporting products and technical documentation more efficiently.
Touring and live events
Review product selection against the venue, usage cycle, installation approach and delivery requirements.
Discuss this applicationRental system inventories
Review product selection against the venue, usage cycle, installation approach and delivery requirements.
Discuss this applicationLarge venue sound reinforcement
Review product selection against the venue, usage cycle, installation approach and delivery requirements.
Discuss this applicationPRODUCTION & DELIVERY
Bring the model, order and export details together.
We support model discussion, OEM / ODM scope, product inspection preparation, export packing coordination and repeat-order consistency.
Technical confirmation
Confirm product selection, core specifications and the intended application before quotation.
OEM / ODM discussion
Review finish, labels, branding and packaging within a confirmed project scope.
Inspection preparation
Align order details, packing method and shipment documentation prior to dispatch.
Repeat-order support
Keep the selected model and packing requirements consistent for future purchasing.
FAQ
Questions buyers usually confirm first.
For model-specific drawings, certification needs, lead time or system configuration, include your project details with the inquiry.
How do I choose the right line array systems model?
Start with the application, venue size, system configuration, target quantity and delivery destination. We can then discuss a suitable model and supporting information.
Can I request model-specific specifications and drawings?
Yes. Send the model and project context. Our team can confirm the current technical documents available before you finalize a configuration.
Do you support OEM / ODM and export packing?
OEM / ODM scope, labels, finish, packaging and commercial documents depend on the model, quantity and destination. Confirm these items before production.
OEM / ODM & project support
Build the right line array systems solution for your market.
For distributors, rental companies, system integrators and event contractors, we align product selection, configuration, brand direction and delivery requirements before production.
System design support
Share your venue, coverage target and application. We help you start the system conversation with the right context.
Discuss your project
Brand & finish options
Discuss cabinet finish, branding and other project-facing requirements for your intended market.
Discuss your project
Export packing coordination
Align packing and delivery requirements before production and dispatch planning.
Discuss your project
People behind the system
Built with people who understand professional sound.
From engineering conversations to export coordination, you work with a team that stays close to the project.
Factory confidence
See how every partnership moves forward.
Trust is earned in the details: product discussion, engineering alignment and careful final preparation.
Customer visits
Listen, inspect, then decide.
Invite your team to review system details and discuss the requirements of your market face to face.
Acoustic engineering
Development with an engineering mindset.
Our team works from cabinet concepts to practical system configuration for demanding project conditions.
Export inspection
Packed for the journey ahead.
Packaging details are checked before dispatch to support safer international delivery.
